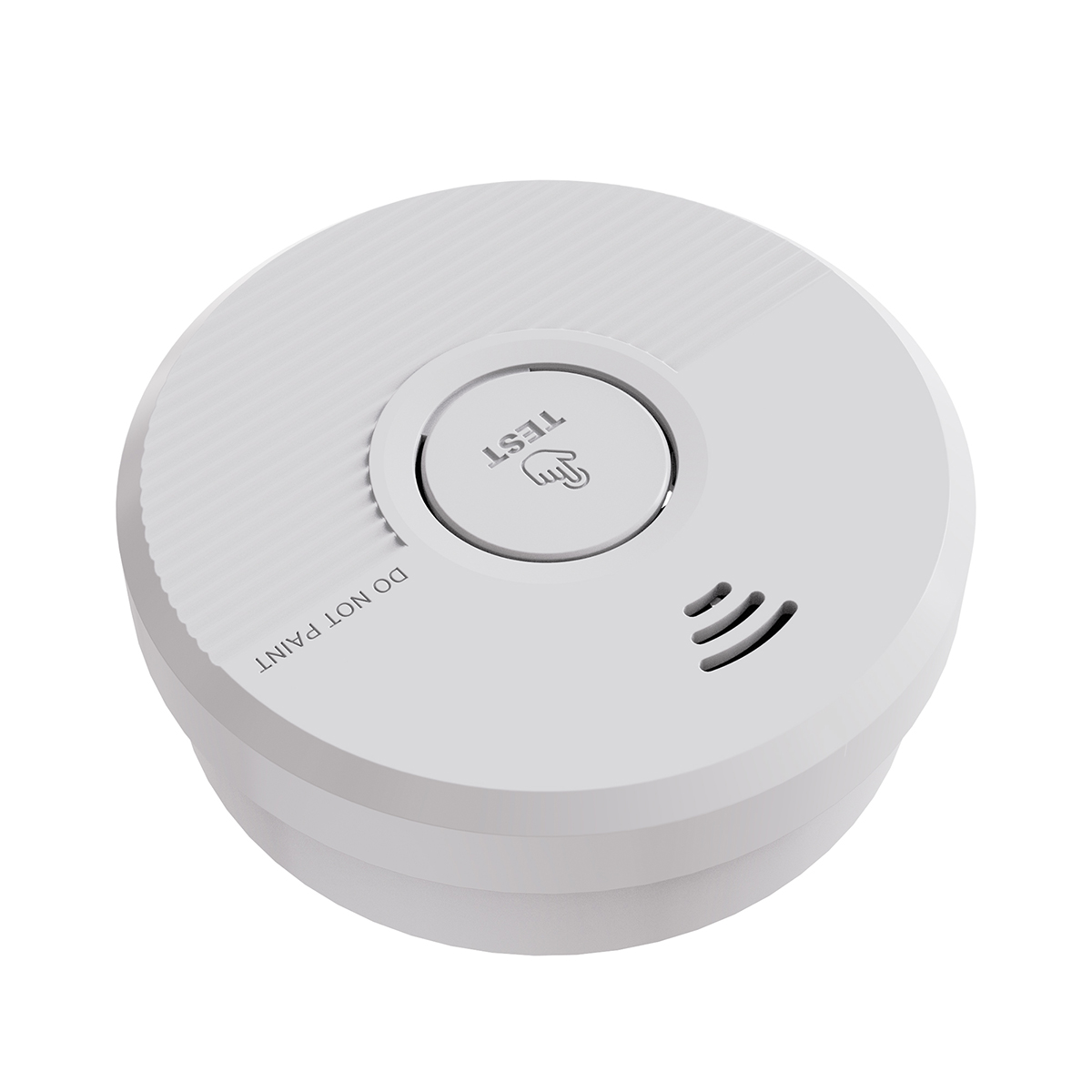

DH-104
Product introduction
Battery operated(DC 9V battery supplied as standard)
Fault warning
Low battery warning
Test/reset button tests alarm circuit operation
Silence feature allows nuisance alarms to be temporarily silenced (e.g those caused by cooking or steam)
Battery operated(DC 9V battery supplied as standard)
Fault warning
Low battery warning
Test/reset button tests alarm circuit operation
Silence feature allows nuisance alarms to be temporarily silenced (e.g those caused by cooking or steam)
Specification
Power Source：DC 9V External battery
Comply with standard：EN 14604:2005/AC:2008
Quiescent Current：<15μA
Alarm Current：25mA
Alarm Volume：>85dB(A) @ 3 meters
Silence time：Approx.8minutes
Product service life：>10 years
Operating humidity Range：<93% relative humidity (RH)
Operating temperature Range：0°C to 40°C
Size：95mm in diameter x 34.5mm depth
Net weight：110g
Power Source：DC 9V External battery
Comply with standard：EN 14604:2005/AC:2008
Quiescent Current：<15μA
Alarm Current：25mA
Alarm Volume：>85dB(A) @ 3 meters
Silence time：Approx.8minutes
Product service life：>10 years
Operating humidity Range：<93% relative humidity (RH)
Operating temperature Range：0°C to 40°C
Size：95mm in diameter x 34.5mm depth
Net weight：110g
EN 14604：2005
